Key features
• Mesh Metal provides a contemporary design aesthetic
• Configurable solutions available on request (custom sizes, edge details, patterns, colours)
• Compatible with DONN® suspension systems
Menu
Categories

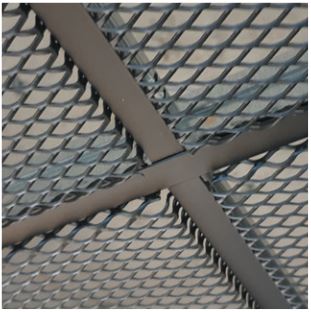

ARMSTRONG MESH Lay-In
Brand:
Description
- Armstrong METAL Cellio durable open cell metal tiles that mask the plenum provide 100% accessibility to lighting, ventilation and sprinklers with an homogeneous appearance.
- Made of pre-coated galvanised steel 0.3mm.
- Lay-In system is fast and easy to install in standard 15mm exposed grid.
- Ideal for shops, supermarkets, shopping malls, enetrance areas, airports, railway stations and showrooms.
| Size/Dimensions | 600x600mm |
|---|---|
| Product Type | ALUMINUM |
| Edge Details | Board, Tegular |
| System | Exposed demountable – System C (15mm T-Grid, butt-cut), Exposed demountable – System C (24mm or 15mm T-Grid, butt-cut), Exposed demountable – System C (24mm T-Grid, butt-cut) |
| Material & patterns | Galvanised steel KD100 / RB25 = 1.0mm RB35 / RB55 = 1.5mm (only for MESH Board) |
| color | RAL 9010 |
| Other colours | RAL 9005, RAL 9006, RAL 9007 |
| Weight | KD100 4.1 – 4.4 kg/m2, RB25 4.0 – 4.3 kg/m2, RB35 4.8 kg/m2, RB55 4.3 kg/m2 |
| Fire Reaction | Euroclass A2-s1, d0 as per EN 13501-1, RUS KM1 (G1, V1, D1, T1) as per 123-FZ |
| Humidity Resistance | 90% RH |
| Indoor Air Quality | A+ |
| Sustainability | ≈14%, Silver* |
| Design options | Colours, Cut-Outs, Dimensions, Patterns |
